Abstract
Iber is a two-dimensional hydraulic model for the simulation of free surface flow in rivers and estuaries, and the simulation of environmental processes in fluvial hydraulics. Since the release of the first version of Iber, which included a hydrodynamic calculation engine fully coupled with sediment transport processes and turbulence, it has evolved to become a free surface flow modelling tool for highly complex environmental processes. This document presents the developments made for version 3, specifically, for the new calculation module for the simulation of shallow non-Newtonian flows called Iber-NNF. The shallow water equations are solved using an ad-hoc numerical scheme focused on the simulation of this type of flow in nature (e.g., steep slopes, irregular geometries). The graphical user interface (GUI) has been adapted to the module's new features to achieve a simple and user-friendly workflow.
Keywords: non-Newtonian flows, snow avalanches, mud/debris flows, hypercongested flows, Iber
Resumen
Iber es un modelo numérico bidimensional de simulación de flujo turbulento en lámina libre en régimen no-permanente, y de procesos medioambientales en hidráulica fluvial. Desde el lanzamiento de la primera versión, que incluía un motor de cálculo hidrodinámico para completamente acoplado con procesos de transporte de sedimento y turbulencia, Iber ha ido evolucionando hasta convertirse en una herramienta de modelización de flujo de agua en lámina libre de procesos ambientales de elevada complejidad. En este documento se presentan los desarrollos realizados para la versión 3, concretamente para el nuevo módulo de cálculo para la simulación de flujos no-newtonianos someros denominado Iber-NNF. La resolución de las ecuaciones de aguas someras se lleva a cabo mediante un esquema numérico propio enfocado a la simulación de este tipo de flujos en la naturaleza (p.ej., pendientes elevadas, geometrías irregulares). La interfaz gráfica de usuario (GUI) se ha adaptado para con las nuevas características del módulo con el fin de obtener un flujo de trabajo sencillo y amigable.
Palabras clave: flujos no-newtonianos, aludes, flujo de lodos/escombros, flujos hipercongestionados, Iber
1 Introduction
Numerical modelling of natural phenomena, particularly weather-related which are the 90 % of global disasters, is essential to analyse and predict hazardous situations for the people, the economy and the environment. The evolution of these numerical tools, from simple one-dimensional to complex three-dimensional models, to simulate hydrological hazards like floods, mass movements, and avalanches is challenging, especially those in which the fluid can be characterized as non–Newtonian flows.
Iber-NNF was developed, based on Iber [1], as a depth-averaged two-dimensional hydrodynamic numerical tool to simulate non–Newtonian shallow flows. To that end, a particular numerical scheme based on an upwind discretisation to ensure a proper balance between the non–velocity-dependent terms of the shear stresses and the pressure forces has been developed [2]. This ensures the stop of the fluid according to the rheological properties of the fluid, even in steep slopes and complex geometries. The code besides being validated and applied in theoretical, analytical, and real situations of common and non–common non–Newtonian shallow flows [2,3,4,5,6,7], it has been fully integrated in the graphical user interface of Iber. This facilitates the model build-up, setup and results visualization converting the new code in a software suite fully operational for all practitioners.
The common applications of Iber-NNF are the numerical modelling of dense snow avalanches, mine tailings propagation (e.g., after a dam-break), lahars, and hypercongested flows (e.g., wood laden flows). To that end, several rheological models were implemented making Iber-NNF versatile and widen applicable for non-Newtonian shallow flows.
2 Graphical user interface of Iber-NNF
2.1 Generalities
The current version of Iber-NNF is fully integrated into Iber. Thus, the same properties, options and main workflow used in Iber also applies to Iber-NNF. Only particular characteristics of this module are described below. Further information can be found in the Iber v3 Refence manual [8].
It is worth noticing that Iber-NNF currently works as an independent hydrodynamic module. None interaction between the rest of calculation modules is permitted due to the kind of flow that Iber-NNF simulate is not water. Future interactions are not discarded.
2.2 Particularities
Iber-NNF, as for the rest of modules, must be activated. The activation of Iber-NNF can be done by:
- The menu Iber tools >> Plug-ins…
- The shortcut
(located on the left side of the interface, by default)
- The shortcut
Once selected ‘NonNewtonian fluid’ as a module, and then applied, the interface will be adapted to this new hydrodynamic module oriented to simulate non–Newtonian flows. The main difference between Iber and Iber-NNF module relays on the implementation of the flow resistant terms, or rheological model, which have been split in two:
- Velocity-dependent, available through Data >> Roughness >> Friction slope…
- Non–Velocity-dependent, available through Data >> Problem data > Non-Newtonian Fluid
This separation is a consequence of the numerical scheme developed ad hoc for Iber-NNF. More information is available in Sanz-Ramos et al. [2].
2.3 Implementation of rheological properties of the fluid
As mentioned previously, there is a different way to implement the rheological properties of the fluid in Iber-NNF.
2.3.1 Velocity-dependent terms
Velocity-dependent terms of the rheological model must be implemented as a friction slope at each mesh element (Data >> Roughness >> Friction slope…). These parameters can be defined manually or automatically (by a raster file), and are associated to the concept known as ‘Land use’; thus, they can vary spatially.
|
|
| (a) | (b) |
Fig. 1. Land uses windows: (a) database of land uses for non-Newtonian flows; (b) list of velocity-dependent parameters according to each rheological model.
2.3.2 Non–Velocity-dependent terms
By contrast, non–Velocity-dependent terms can be interpreted as a characteristic of the fluid; thus, they cannot vary spatially –perhaps temporally– and they must be defined as a constant value (Data >> Problem data > Non Newtonian Fluid). This is the case of the flow density, the pressure factor, the Coulomb friction coefficient, the yield stress, etc.

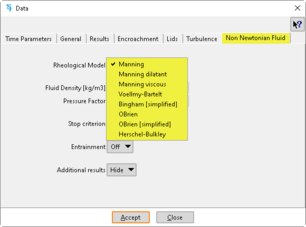

Fig. 2. Problem data window. Non-Newtonian fluid tab allows the selection of the rheological model to be used and other properties.
2.4 Stop criterion
The detention of any fluid is consequence of a balance between resistance and driving forces. Iber-NNF uses an ad hoc numerical scheme that allows the stop of the fluid according to the fluid properties [2], i.e. the rheological model.
Another popular numerical model uses a stopping criterion based on controlling the momentum, where the fluid is made to stop when its momentum is lower than a user-defined fraction of its maximum momentum. However, this criterion lacks a physical basis, as the maximum momentum depends on the avalanche’s characteristics at very different location and time than those when it stops.
Both stop criterion are implemented into Iber-NNF; nevertheless, we encourage to use the ‘Rheology based’ criterion because is physically based.

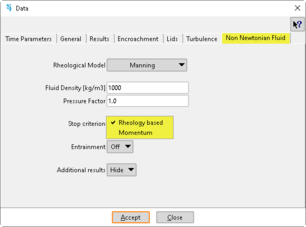

Fig. 3. Problem data window. Selection of the stop criterion.
3 Governing equations
This section is a brief description of the governing equations of Iber-NNF. Further details about this hydrodynamic module and the numerical scheme used to solve the equations can be found in Sanz-Ramos et al. [2].
3.1 2D shallow water equations for non-Newtonian shallow flows
Iber-NNF solves a particular case of the two-dimensional shallow water equations (2D-SWE), a hyperbolic nonlinear system of three partial differential equations described in Equation (1):
|
(1) |
where Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle h}
is the water depth, Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle {q}_{x}}
and Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle {q}_{y}}
are the two components of the specific discharge, Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle g}
is the gravitational acceleration, Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle {S}_{o,x}}
and Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle {S}_{o,y}}
are the two bottom slope components computed as Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle {\mathit{\boldsymbol{S}}}_{\mathit{\boldsymbol{o}}}=}
Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\left( \frac{\partial {z}_{b}}{\partial x},\frac{\partial {z}_{b}}{\partial y}\right) }^{T} , where Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle {z}_{b}}
is the bed elevation, and Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle {S}_{f,x}}
and Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle {S}_{f,y}}
are the two friction slope components computed throughout the rheological model. The friction forces exerted over an inclined bed and the pressure terms can be corrected by replacing the gravity acceleration Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle g}
by Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle {g}^{'}=}
Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): \mathrm{g{cos}^{2}}\,\theta
[9,10,11]. Since the hydrostatic and isotropic pressure distribution cannot be assumed for non-Newtonian flows, as it is done for free surface water flows [12], a factor Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle {K}_{p}} multiplying the pressure terms in the momentum equations was applied [13]. A Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle {K}_{p}} value equal to 1 implies hydrostatic and isotropic pressure distribution. The term Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle E} is entrainment, a process by which solid particles or fragments become incorporated into a moving fluid. The current code partially integrates entrainment formulas based on flow velocity criterion [14], flow height criterion [15] and bed shear stress criterion [16]. The acknowledgment of entrainment is essential for ensuring reliable outcomes and, thus, preventing the underestimation of the volume of snow descending a slope.
3.2 Rheological models
Rheological models to describe both dynamic and static phase of non–Newtonian shallow flows exist for a wide field of applications. In particular, for those related to environmental flows, and more specially for shallow flows, several rheological models have been developed to describe the relationship between the shear stress and the shear rate [17].
From the simplest Potential law to the full –and complex– Bingham model, several rheological models exist in the literature, the development of each one being oriented to achieve a particular reproduction of a fluid behaviour. The aim of Iber-NNF is not to include as rheological models as possible –or exist–; however, there are some models that, although they have been omitted, can be easily integrated into the proposed numerical scheme by slightly adapting the code. This would allow a broader simulation of the behaviour of non–Newtonian shallow fluids.
Two hypotheses are usually considered in non-Newtonian shallow flows modelling: a monophasic fluid, in which the fluid is formed by a unique phase where all components are perfectly mixed, and shear stress grouping, in which the effect of different shear stresses are grouped as five components of a single term [18] as follows:
|
(2) |
where Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle {\tau }_{d}}
represents the dispersive term, Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle {\tau }_{t}}
the turbulent term, Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle {\tau }_{v}}
the viscous term, Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle {\tau }_{mc}}
the Mohr–Coulomb terms, and Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle {\tau }_{c}}
the cohesive term. In these components, the appropriate rheological model for the particular purpose of each work is obtained by selecting one or several components of Equation (2).
Iber-NNF integrates several rheological models to represent the resistance forces that act against flow motion of non–Newtonian flows, such as mudflows, debris flows, snow avalanches, lahars, etc. [2,3,4,5,6,7]. The following sections describe the rheological models implemented expressed in friction slope form ( Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle \tau =} Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): \, \rho gh{S}_{f} ).
3.2.1 Manning
The Manning rheological model, an empirical equation widely utilised in hydraulics and hydrology, applies to uniform flow in open channels and is a function of the channel velocity, flow area and channel slope:
|
(3) |
where Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle n}
is the Manning coefficient, Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle v}
is the flow velocity and Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle h}
is the flow depth. It is related to turbulent friction ( Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle {\tau }_{t}}
), being utilised by several authors for simulating hyperconcentrated flows [19,20,21,22]. The unique value for calibration is the Manning coefficient ( Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle n} ).
3.2.2 Bingham (simplified)
Since the proposal of the Bingham rheological model [23], several approaches have been introduced to deal with the difficulties on directly obtaining the shear stress proportional to the flow velocity [24]. Assuming an incompressible and homogeneous flow [25,26], the following expression for the viscous ( Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle {\tau }_{v}} ) and the Mohr–Coulomb ( Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle {\tau }_{mc}} ) contributions:
|
(4) |
where Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle {\tau }_{y}}
is the yield stress, Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle \rho}
is the fluid density, Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle h}
is the flow depth, Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle {\mu }_{B}}
is the fluid viscosity, Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle v}
is the flow velocity, and Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle g}
is the gravitational acceleration.
3.2.3 Voellmy
Voellmy [27] presented a rheological model that considers the turbulent ( Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle {\tau }_{t}} ) and the Mohr–Coulomb ( Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle {\tau }_{mc}} ) terms as follows:
|
(5) |
where Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle \xi}
is the turbulent friction coefficient, Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle \mu}
is the Coulomb friction coefficient, Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle h}
is the flow depth and Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle v}
is the flow velocity.
3.2.4 Bartelt
Bartelt et al. [28] developed a new resistance term related to the cohesion, a physical property of the fluid. This rheological model is commonly used together with the Voellmy model, and expresses as follows:
|
(6) |
where Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle \rho}
is the fluid density, Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle g}
is the gravitational acceleration, Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle h}
is the flow depth, Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle {C}_{B}\,}
is the cohesion, and Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle \mu}
is the Coulomb friction coefficient.
3.2.5 Dilatant
Similarly to the Manning rheological models, and considering constant sediment concentration and uniform flow, Macedonio and Pareschi [29] derived the following expression: Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle \tau =} Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\tau }_{y}+{\mu }_{1}{\left( \frac{dv}{dz}\right) }^{\alpha } , where Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle {\tau }_{y}}
is the yield stress, Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle {\mu }_{1}}
is a proportionality coefficient and Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle \alpha}
is the flow behaviour index.
When Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle \alpha}
= 2 a dilatant flow behaviour is expected:
|
(7) |
3.2.6 Viscous
Macedonio and Pareschi [29] also presented the application of the Manning equation to viscous flows by particularizing the parameter Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle \alpha}
= 1. This allows for the representation of viscous flows:
|
(8) |
3.2.7 O’Brien
On the other hand, O’Brien and Julien [30] derived an expression for the representation of the shear stress of mudflows, being a quadratic equation that integrates the Mohr–Coulomb term ( Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle {\tau }_{mc}} ), the viscous term ( Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle {\tau }_{v}} ) and the turbulent term ( Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle {\tau }_{t}} ) as follows:
|
(9) |
where Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle {\tau }_{y}}
is the yield stress, Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle \rho}
is the fluid density, Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle g}
is the gravitational acceleration, Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle h}
is the flow depth, Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle K}
is a resistance parameter, Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle {\mu }_{B}}
is the flow viscosity, Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle v}
is the flow velocity, and Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle n}
is the Manning coefficient.
3.2.8 Herschel-Bulkley
The formulation of Herschel and Bulkley [31] is a generalization of various expressions in which, depending on the value of the coefficient Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle \alpha}
, dilatant, viscous, plastic, etc. behaviours can be derived. This formula follows the following expression:
|
(10) |
where Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle {\tau }_{y}}
is the yield stress, Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle \rho}
is the fluid density, Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle g}
is the gravitational acceleration, Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle h}
is the flow depth, Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle k}
is a consistency parameter, and Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle v}
is the flow velocity.
3.3 Entrainment
The entrainment is a relevant phenomenon in non-Newtonian flow dynamic modelling because the shear stress between the moving fluid and the terrain generally erode the bottom. This eroded material is then aggregated to the bulk, and might affect it properties (e.g., fluid density) and behaviour.
The effects of entrainment extend beyond altering mass and energy balances. Predicted velocities along the bulk path and the kinetic energy upon reaching the runout zone are also affected. These changes directly influence runout distances and have substantial implications for hazard and risk mapping. Particularly for snow avalanche modelling, entrainment leads to higher predicted flow heights and volumes of avalanches [15,32,33,34,35].
Accurate predictions are crucial for designing infrastructure, such as barriers or dams, as incorrect estimations may result in inadequate protection or increased costs. Therefore, precise consideration of entrainment is essential for determining runout distances and optimizing infrastructure design to mitigate hazards effectively.
3.3.1 Velocity model
This is a simple model that considers mass entrainment as function of the flow velocity. In contrast with another popular model, Iber-NNF considers entrainment when the flow velocity is greater than a threshold ( Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle {u}_{crit}} ).
|
(11) |
where Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle {K}_{u}}
is the entrainment rate, which commonly range from 5 to 40·10-5.
3.3.2 Height model
In this model, the entrainment depends on the load of the underlying snow cover as long as its height reaches a fixed minimum value ( Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle {h}_{crit}} ); otherwise, the entrainment will be considered inexistent [15]. This model also integrates an upper limit for the height based on the dry friction law to avoid the dry friction increasing limitless [36]:
|
(12) |
where Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle {K}_{u}}
is the entrainment rate, which commonly range from 1 to 8·10-3 s-1, and Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle {h}_{lim}}
being the maximum avalanche flux height at which yielding at the basal surface occurs:
|
(13) |
3.3.3 Squared velocity model
This equation is similar to the velocity model although the entrainment rate is considered to vary with the squared velocity of the avalanche [15]:
|
(14) |
where Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle {K}_{u}^{2}}
is the entrainment rate, which commonly range from 4 to 32·10-6.
3.3.4 Bed shear stress model
Similar to how the sediment transport is computed, a new equation to calculate the entrainment as a function of the bed shear stress between the lower snow layer and the avalanche:
|
(15) |
where Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle {K}_{\tau }}
is the entrainment rate, which a range from 1.5 to 12·10-6 m·s-1·Pa-1 is proposed [16].
4 Results
As in the hydrodynamic module for water flows, Iber-NNF also integrates flow depths, velocities, elevation, etc. However, particular results can be activated through Data >> Problem data >> NonNewtonian fluid tab, such as extra topographical information (terrain slope) and impact forces [37,38]. This results essentially applies for dense snow avalanche modelling, but they are not limited to.
Particularly for impact forces, Iber-NNF calculates the dynamic pressure (Equation (16)), the peak dynamic pressure (Equation (17)) and its maximus as follows:
|
(16) | |
|
(17) |
where Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle \rho}
is the fluid density and Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://mathoid.scipedia.com/localhost/v1/":): {\textstyle u}
is the fluid velocity.
References
[1] E. Bladé, L. Cea, G. Corestein, E. Escolano, J. Puertas, E. Vázquez-Cendón, J. Dolz, A. Coll, Iber: herramienta de simulación numérica del flujo en ríos, Rev. Int. Métodos Numéricos Para Cálculo y Diseño En Ing. 30 (2014) 1–10. https://doi.org/10.1016/j.rimni.2012.07.004.
[2] M. Sanz-Ramos, E. Bladé, P. Oller, G. Furdada, Numerical modelling of dense snow avalanches with a well-balanced scheme based on the 2D shallow water equations, J. Glaciol. (2023) 1–17. https://doi.org/10.1017/jog.2023.48.
[3] M. Sanz-Ramos, E. Bladé, M. Sánchez-Juny, El rol de los términos de fricción y cohesión en la modelización bidimensional de fluidos no Newtonianos: avalanchas de nieve densa, Ing. Del Agua. 27 (2023) 295–310. https://doi.org/10.4995/ia.2023.20080.
[4] M. Sanz-Ramos, C.A. Andrade, P. Oller, G. Furdada, E. Bladé, E. Martínez-Gomariz, Reconstructing the Snow Avalanche of Coll de Pal 2018 (SE Pyrenees), GeoHazards. 2 (2021) 196–211. https://doi.org/10.3390/geohazards2030011.
[5] V. Ruiz-Villanueva, B. Mazzorana, E. Bladé, L. Bürkli, P. Iribarren-Anacona, L. Mao, F. Nakamura, D. Ravazzolo, D. Rickenmann, M. Sanz-Ramos, M. Stoffel, E. Wohl, Characterization of wood-laden flows in rivers, Earth Surf. Process. Landforms. 44 (2019) 1694–1709. https://doi.org/10.1002/esp.4603.
[6] M. Sanz-Ramos, J.J. Vales-Bravo, E. Bladé, M. Sánchez-Juny, Reconstructing the spill propagation of the Aznalcóllar mine disaster, Mine Water Environ. 43 (2024). https://doi.org/10.1007/s10230-024-01000-5.
[7] M. Sanz-Ramos, E. Bladé, M. Sánchez-Juny, T. Dysarz, Extension of Iber for Simulating Non–Newtonian Shallow Flows: Mine-Tailings Spill Propagation Modelling, Water. 16 (2024) 2039. https://doi.org/10.3390/w16142039.
[8] M. Sanz-Ramos, L. Cea, E. Bladé, D. López-Gómez, E. Sañudo, G. Corestein, G. García-Alén, J. Aragón-Hernández, Iber v3. Reference manual and user’s interface of the new implementations, CIMNE, 2022. https://doi.org/10.23967/iber.2022.01.
[9] Y. Ni, Z. Cao, Q. Liu, Mathematical modeling of shallow-water flows on steep slopes, J. Hydrol. Hydromechanics. 67 (2019) 252–259. https://doi.org/10.2478/johh-2019-0012.
[10] A. Maranzoni, M. Tomirotti, New formulation of the two-dimensional steep-slope shallow water equations. Part I: Theory and analysis, Adv. Water Resour. 166 (2022) 104255. https://doi.org/10.1016/j.advwatres.2022.104255.
[11] D. Zugliani, G. Rosatti, TRENT2D❄: An accurate numerical approach to the simulation of two-dimensional dense snow avalanches in global coordinate systems, Cold Reg. Sci. Technol. 190 (2021) 103343. https://doi.org/10.1016/j.coldregions.2021.103343.
[12] V. Te Chow, Open-Channel Hydraulics, McGraw-Hill Book Company Inc. New York, USA, 1959.
[13] S.B. Savage, K. Hutter, The motion of a finite mass of granular material down a rough incline, J. Fluid Mech. 199 (1989) 177–215. https://doi.org/10.1017/S0022112089000340.
[14] M. Christen, J. Kowalski, P. Bartelt, RAMMS: Numerical simulation of dense snow avalanches in three-dimensional terrain, Cold Reg. Sci. Technol. 63 (2010) 1–14. https://doi.org/10.1016/j.coldregions.2010.04.005.
[15] M.E. Eglit, K.S. Demidov, Mathematical modeling of snow entrainment in avalanche motion, Cold Reg. Sci. Technol. 43 (2005) 10–23. https://doi.org/10.1016/j.coldregions.2005.03.005.
[16] J. Castelló, Enhancement and application of numerical methods for snow avalanche modelling, Master thesis. Universitat Politècnica de Catalunya. Barcelona, Spain, 2020.
[17] K. Msheik, Non-Newtonian Fluids: Modeling and Well-Posedness, Universite Grenoble Alpes, Saint-Martin-d’Hères, France, 2020. https://hal.archives-ouvertes.fr/tel-03099969.
[18] P.Y. Julien, C.A. León, Mudfloods, mudflows and debrisflows, classification in rheology and structural design, in: Int. Work. Debris Flow Disaster 27 November–1 December 1999, 2000: pp. 1–15.
[19] T. Takahashi, Debris flow: mechanics and hazard mitigation, in: ROC-JAPAN Jt. Semin. Mul- Tiple Hazards Mitig., National Taiwan Univerisity, Taipei, Taiwan, ROC, 1985: pp. 1075–1092.
[20] A. Laenen, R.P. Hansen, Simulation of three lahars in the Mount St. Helens area, Washington, using a one-dimensional, unsteady-state streamflow model, 1988. https://doi.org/https://doi.org/10.3133/wri884004.
[21] M. Syarifuddin, S. Oishi, R.I. Hapsari, D. Legono, Empirical model for remote monitoring of rain-triggered lahar at Mount Merapi, J. Japan Soc. Civ. Eng. Ser. B1 (Hydraulic Eng. 74 (2018) I_1483-I_1488. https://doi.org/10.2208/jscejhe.74.I_1483.
[22] A.R. Darnell, J.C. Phillips, J. Barclay, R.A. Herd, A.A. Lovett, P.D. Cole, Developing a simplified geographical information system approach to dilute lahar modelling for rapid hazard assessment, Bull. Volcanol. 75 (2013) 713. https://doi.org/10.1007/s00445-013-0713-6.
[23] E.C. Bingham, An investigation of the laws of plastic flow, Bull. Bur. Stand. 13 (1916) 309–353. https://doi.org/10.6028/bulletin.304.
[24] M. Pastor, B. Haddad, G. Sorbino, S. Cuomo, V. Drempetic, A depth‐integrated, coupled SPH model for flow‐like landslides and related phenomena, Int. J. Numer. Anal. Methods Geomech. 33 (2009) 143–172. https://doi.org/10.1002/nag.705.
[25] H. Chen, C.F. Lee, Runout Analysis of Slurry Flows with Bingham Model, J. Geotech. Geoenvironmental Eng. 128 (2002) 1032–1042. https://doi.org/10.1061/(ASCE)1090-0241(2002)128:12(1032).
[26] D. Naef, D. Rickenmann, P. Rutschmann, B.W. McArdell, Comparison of flow resistance relations for debris flows using a one-dimensional finite element simulation model, Nat. Hazards Earth Syst. Sci. 6 (2006) 155–165. https://doi.org/10.5194/nhess-6-155-2006.
[27] A. Voellmy, Über die Zerstörungskraft von Lawinen, Schweizerische Bauzeitung. 73 (1955) 15. https://doi.org/10.5169/seals-61891.
[28] P. Bartelt, C.V. Valero, T. Feistl, M. Christen, Y. Bühler, O. Buser, Modelling cohesion in snow avalanche flow, J. Glaciol. 61 (2015) 837–850. https://doi.org/10.3189/2015JoG14J126.
[29] G. Macedonio, M.T.T. Pareschi, Numerical simulation of some lahars from Mount St. Helens, J. Volcanol. Geotherm. Res. 54 (1992) 65–80. https://doi.org/10.1016/0377-0273(92)90115-T.
[30] J.S. O’Brien, P.Y. Julien, Laboratory Analysis of Mudflow Properties, J. Hydraul. Eng. 114 (1988) 877–887. https://doi.org/10.1061/(ASCE)0733-9429(1988)114:8(877).
[31] W.H. Herschel, R. Bulkley, Konsistenzmessungen von Gummi-Benzollösungen, Kolloid-Zeitschrift. 39 (1926) 291–300. https://doi.org/10.1007/bf01432034.
[32] L. Dreier, Y. Bühler, W. Steinkogler, T. Feistl, M. Christen, P. Bartelt, Modelling Small and Frequent Avalanches, in: Int. Snow Sci. Work. 2014 Proc., 29 Sep - 3 Oct, Banff, Canada, 2014: p. 8. http://arc.lib.montana.edu/snow-science/item/2128.
[33] V. Medina, M. Hürlimann, A. Bateman, Application of FLATModel, a 2D finite volume code, to debris flows in the northeastern part of the Iberian Peninsula, Landslides. 5 (2008) 127–142. https://doi.org/10.1007/s10346-007-0102-3.
[34] M. Eglit, A. Yakubenko, J. Zayko, A Review of Russian Snow Avalanche Models—From Analytical Solutions to Novel 3D Models, Geosciences. 10 (2020) 77. https://doi.org/10.3390/geosciences10020077.
[35] M. Garcia, G. Parker, Entrainment of Bed Sediment into Suspension, J. Hydraul. Eng. 117 (1991) 414–435. https://doi.org/10.1061/(ASCE)0733-9429(1991)117:4(414).
[36] P. Bartelt, B. Salm, U. Gruber, Calculating dense-snow avalanche runout using a Voellmy-fluid model with active/passive longitudinal straining, J. Glaciol. 45 (1999) 242–254. https://doi.org/10.3189/s002214300000174x.
[37] C.J. Keylock, M. Barbolini, Snow avalanche impact pressure - vulnerability relations for use in risk assessment, Can. Geotech. J. 38 (2011) 227–238. https://doi.org/10.1139/t00-100.
[38] F. Rudolf-Miklau, S. Sauermoser, A.I. Mears, F. Rudolf‐Miklau, S. Sauermoser, A.I. Mears, The Technical Avalanche Protection Handbook, Wiley, Berlin, Germany, 2014. https://doi.org/10.1002/9783433603840.
Document information
Published on 21/07/25
DOI: 10.23967/iber.2025.02
Licence: CC BY-NC-SA license
